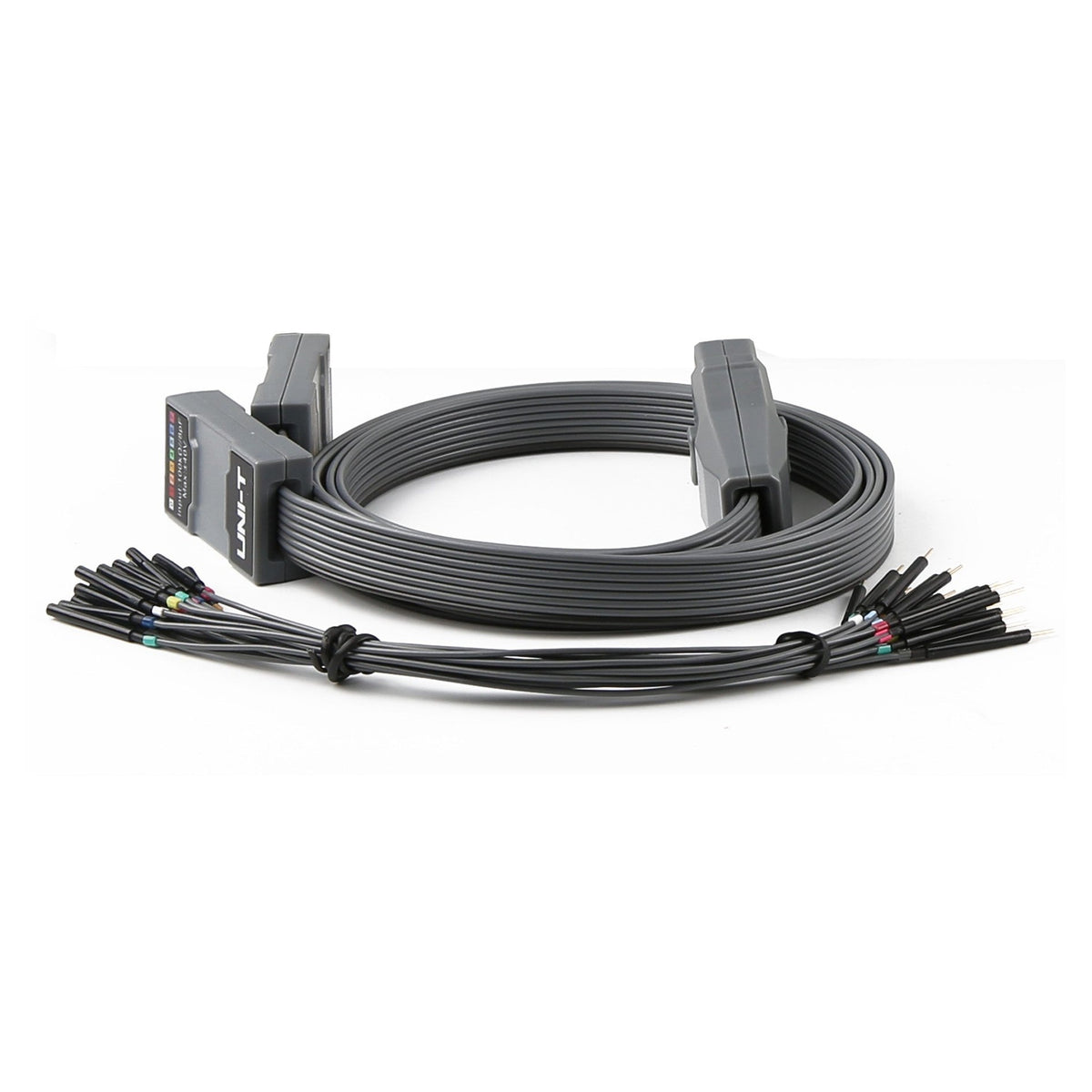

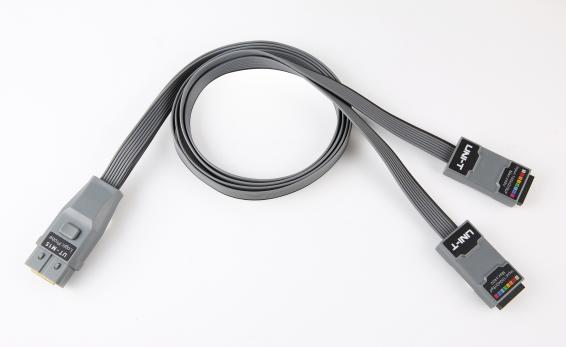

UT-M15 Classic Logic Pod for UPO/MSO Oscillosocopes
UT-M15 Classic Logic Pod for UPO/MSO Oscillosocopes
No reviews
Share
Regular price
$332.00 USD
Regular price
Sale price
$332.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
16-channel logic analyzer probe pod for UPO/MSO Oscillosocopes (UPO/MSO2000, MSO/UPO3000E, MSO X, and MSO HD (except MSO1000HD (uses UT-M26 only). Adds digital bus visibility for mixed-signal debugging of embedded, automotive, and industrial protocols. Connects to compatible UNI-T oscilloscopes via the dedicated logic analyzer port.
Key Features
- Standard BNC Connection — Connects to compatible UNI-T oscilloscopes via the dedicated logic analyzer port.
- 16 Digital Channels — Adds digital bus visibility for debugging embedded, automotive, and industrial communication protocols.
- Compatibility — Compatible with UNI-T MSO/UPO2000, MSO2000X, MSO/UPO3000, MSO3000X, MSO3000HD, MSO5000D, MSO8000HD. NOT COMPATIBLE with MSO1000HD-series.
Specifications
| Channels | 16 |
| Connector Type | 8×2 square pin, 2.54mm |
| Input Capacitance | 9.0 pF |
| Input Impedance | 101 Ω ±1% |
| Min Pulse Width | 800ps |
